HYDexFlow 6945

      Model No:78DX9

       Part No:42HV5

Evolved for the Better
 HYDexFlow 6945 refinery modules generate mixed bed deionized water through electrodeionization and are specifically designed for refinery applications. HYDexFlow 6945 refinery modules consistently deliver maximum reliability and superior performance for power, HPI/CPI, general electronics and laboratory applications without regeneration downtime.

 Specifications
■ Product Flow min. gpm (m3/hr) 2.0 (0.44)
■ Product Flow nominal gpm (m3/hr) 3.5 (0.64)
■ Product Flow max. gpm (m3/hr) 4.0 (0.78)
■ Product Weight lbs (kg) 182(75)
■ Product Weight lbs (kg) 120 (65)

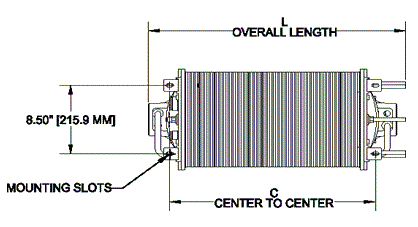

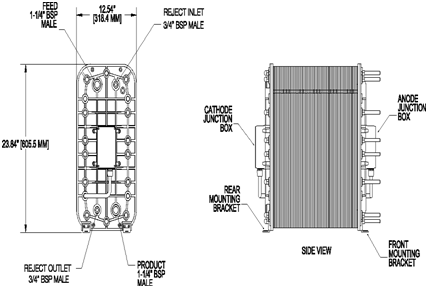

HYDexFlow 6945 Module Model No:78DX9 Part No:42HV5

Features

■ Cost effective CPVC spacers for oil refinery EDI.

■    Double O-ring seal guarantees  leak-free operation.

■ Generate mixed-bed quality deionized water without the use of chemicals.

■ No need for acid/caustic, neutralization system or exchangeable DI tanks.

■ Continuous production instead of batch, with consistent quality.

■ Superior electrical isolation.

■ 100 psi (7 bar), 113˚F (45˚C) continuous operation.

■ Proprietary all-filled concentrating compartments eliminate recirculation pump and brine injection.

■ Significantly lower operating costs, than conventional ion exchange.

  Operational Data

Operating Environment

■     Installation should be indoors with no direct sun light and should have a maximum ambient room temperature of 113˚F (45˚C).

Quality Assurance Standards

■    CE marked. Each module is factory tested to meet strict industry standards and is manufactured in an ISO 9001 and ISO 14000 quality and environmental management system.
